1、MNS開關柜柜體框架為組合式結構，基本骨架由C型材組裝而成；MNS低壓交流式配電柜
1. The frame of the MNS switchgear cabinet is a modular structure, with the basic framework assembled from C-shaped profiles; MNS low-voltage AC distribution cabinet
2、每一個柜體分隔為三個室，及水平母線室、抽屜單元室、電纜室。各隔室之間用鋼板或度阻燃塑料功能板相互隔開，上下層抽屜之間有帶通風孔的金屬板隔離，用以有效防止開關元件因故障引起的飛狐或母線與其它線路短路造成的事故；
2. Each cabinet is divided into three compartments, including horizontal busbar compartment, drawer unit compartment, and cable compartment. Each compartment is separated from each other by steel plates or flame-retardant plastic functional plates, and there are metal plates with ventilation holes between the upper and lower drawers to effectively prevent accidents caused by flying foxes or short circuits between busbars and other lines due to switch component faults;
3、設計緊湊:以較小的空間容納較多的功能單元MNS低壓交流式配電柜
3. Compact design: accommodates a large number of functional units in a smaller space MNS low-voltage AC distribution cabinet
4、結構件通用性強、組裝靈活，以E=25mm為模數，結構及抽出式單元可以任意組合，以滿足系統設置的需要；
4. The structural components have strong universality and flexible assembly, with E=25mm as the modulus. The structure and withdrawable units can be combined arbitrarily to meet the needs of system settings;
5、母線用度阻燃型、高絕緣強度的塑料功能板保護，具有抗故障電弧性能，試運行維修可靠；
5. The busbar is protected by flame-retardant plastic functional plates with high insulation strength, which have anti fault arc performance and are safe and reliable for trial operation and maintenance;
6、各種大小抽屜的機械連鎖機構符合標準規定，有連接、試驗、隔離、抽出四個位置，標示清楚，可靠；
6. The mechanical interlocking mechanisms of various sizes of drawers comply with standard regulations, with four positions for connection, testing, isolation, and extraction, clearly marked, safe, and reliable;
7、MNS配電柜柜體 材質可選用冷軋板、鍍鋅板、敷鋁鋅板制作；2.0厚
7. The material of the MNS distribution cabinet body can be made of cold rolled sheet, galvanized sheet, or aluminum zinc coated sheet; 2.0 thick
8、開關柜門采用靜電噴塑，使其表面具有抗沖擊、耐腐蝕、外型美觀（顏色可由用戶自定）等優點。
8. The switch cabinet door adopts electrostatic spray molding, making its surface have advantages such as impact resistance, corrosion resistance, and beautiful appearance (color can be determined by the user).
9、框架為組合式結構，基本骨架由C型材組裝而成；MNS低壓交流式配電柜
9. The framework is a modular structure, with the basic framework assembled from C-shaped profiles; MNS low-voltage AC distribution cabinet
10、每一個柜體分隔為三個室，及水平母線室、抽屜單元室、電纜室。各隔室之間用鋼板或度阻燃塑料功能板相互隔開，上下層抽屜之間有帶通風孔的金屬板隔離，用以有效防止開關元件因故障引起的飛狐或母線與其它線路短路造成的事故；
10. Each cabinet is divided into three compartments, including horizontal busbar compartment, drawer unit compartment, and cable compartment. Each compartment is separated from each other by steel plates or flame-retardant plastic functional plates, and there are metal plates with ventilation holes between the upper and lower drawers to effectively prevent accidents caused by flying foxes or short circuits between busbars and other lines due to switch component faults;
11、設計緊湊:以較小的空間容納較多的功能單元MNS低壓交流式配電柜
11. Compact design: accommodates a large number of functional units in a smaller space MNS low-voltage AC distribution cabinet
12、結構件通用性強、組裝靈活，以E=25mm為模數，結構及抽出式單元可以任意組合，以滿足系統設置的需要；
12. The structural components have strong universality and flexible assembly, with E=25mm as the modulus. The structure and withdrawable units can be combined arbitrarily to meet the needs of system settings;
13、母線用度阻燃型、高絕緣強度的塑料功能板保護，具有抗故障電弧性能，試運行維修可靠；
13. The busbar is protected by flame-retardant plastic functional plates with high insulation strength, which have anti fault arc performance and are safe and reliable for trial operation and maintenance;
14、各種大小抽屜的機械連鎖機構符合標準規定，有連接、試驗、隔離、抽出四個位置，標示清楚，可靠；
14. The mechanical interlocking mechanisms of various sizes of drawers comply with standard regulations, with four positions for connection, testing, isolation, and extraction, clearly marked, safe, and reliable;
15、材質可選用冷軋板、鍍鋅板、敷鋁鋅板制作；
15. The material can be made of cold-rolled sheet, galvanized sheet, or aluminum zinc coated sheet;
16、開關柜門采用靜電噴塑，使其表面具有抗沖擊、耐腐蝕、外型美觀（顏色可由用戶自定）等優點。
16. The switch cabinet door adopts electrostatic spray molding, making its surface have advantages such as impact resistance, corrosion resistance, and beautiful appearance (color can be determined by the user).

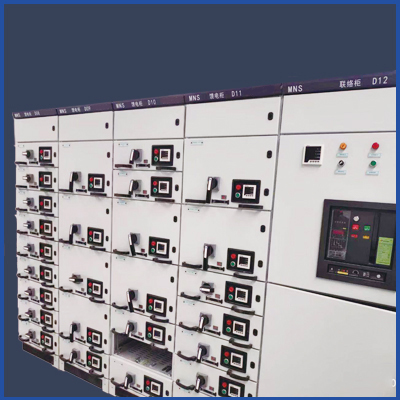

作為新一代低壓抽出式開關柜，具有如下特點：
As a new generation of low-voltage withdrawable switchgear, it has the following characteristics:
1. 結構合理，技術水平高。MNS開關柜的額定載流量，分?jǐn)嗄芰Γ瑒?dòng)熱穩定性能指標均其它型號的低壓開關柜，并且維護方便，可靠。
1. Reasonable structure and high technical level. The rated current carrying capacity, breaking capacity, and dynamic thermal stability performance indicators of MNS switchgear are all other models of low-voltage switchgear, and they are easy to maintain, safe and reliable.
2. 防護性能好。MNS是全隔離的開關柜，內部隔室滿足IEC439-1“形式4”的規定，外殼防護等級為IP31、IP40、IP54。
2. Good protective performance. MNS is a fully isolated switchgear, with internal compartments meeting the requirements of IEC439-1 "Form 4" and enclosure protection levels of IP31, IP40, and IP54.
3. 聯鎖可靠。MNS的防誤操作聯鎖由斷路器操作手柄機構和抽屜位置機械聯鎖操作機構共同完成，其設計**、邏輯性，能有效地防止各種可能出現的有誤操作，并且能與運行方式相結合靈活地實現柜間聯鎖。
3. Reliable interlocking. The anti misoperation interlocking of MNS is jointly completed by the circuit breaker operating handle mechanism and the drawer position mechanical interlocking operating mechanism. Its design is * *, logical, and can effectively prevent various possible misoperations, and can flexibly achieve inter cabinet interlocking in combination with the operating mode.
4. 方案，組合方便。MNS以8E為基本單元，功能單元有8E/4、8E/2、6E、8E、12E、16E、24E、32E、72E,一臺MCC柜*多時可布置36個功能單元，而且可實現PC，MCC混裝，為壓縮柜子數量，靈活選擇方案提供了有利條件。
4. Scheme, easy to combine. MNS takes 8E as the basic unit, with functional units including 8E/4, 8E/2, 6E, 8E, 12E, 16E, 24E, 32E, 72E. One MCC cabinet can accommodate 36 functional units at multiple times, and can achieve mixed installation of PC and MCC, providing favorable conditions for compressing the number of cabinets and flexibly selecting solutions.
MNS低壓開關柜是技術、性能穩定、結構合理、使用方便、可靠的控制設備。已在發電、建筑、鋼鐵、水泥、礦山、石化等供配電系統中廣泛使用。
MNS low-voltage switchgear is a control equipment with stable technology, stable performance, reasonable structure, convenient use, and safety and reliability. It has been widely used in power generation, construction, steel, cement, mining, petrochemical and other power supply and distribution systems.
